LT35A/ LT37A Digital Indicating Controller
LT35A/ LT37A Digital Indicating Controller
เครื่องควบคุมอุณหภูมิรุ่น LT23A, LT35A/LT37A และ LT45A/LT47A เป็นตัวควบคุมดิจิทัลที่ใช้การควบคุมแบบ PID พร้อมด้วยอัลกอริทึมแบบใหม่ “High Performance PID” และ “ฟังก์ชันป้องกันการเกิด Overshoot” แต่ละรุ่นสามารถตั้งค่าพารามิเตอร์ต่างๆ ได้หลากหลายแบบ และยังสามารถเก็บข้อมูลได้โดยใช้ซอฟต์แวร์ Loader อีกด้วย
Models |
Control Output 1 |
LT35A010100A00 |
ON-OFF pulse output |
LT35A050100A00 |
SSR drive pulse output |
LT35A030100A00 |
Current output |
LT37A010100A00 |
ON-OFF pulse output |
LT37A030100A00 |
SSR drive pulse output |
LT37A030100A00 |
Current output |
คุณสมบัติ
คุณสมบัติ
- ฟังก์ชันปรับจูนอัตโนมัติ 3 รูปแบบและฟังก์ชันลดการเกิด Overshoot ช่วยให้การควบคุมมีเสถียรภาพสูง นอกจากนี้ ยังมีฟังก์ชันการคำนวณภายในและตัวเลือกอินพุต/เอาต์พุตที่หลากหลาย ทำให้สามารถใช้งานได้ในสถานการณ์ที่หลากหลาย ซอฟต์แวร์ Loader เฉพาะช่วยให้การตั้งค่าและการรวบรวมข้อมูลเป็นไปอย่างง่ายดาย
- รุ่นมาตรฐานที่มีฟังก์ชันการทำงานที่หลากหลาย มีความคุ้มค่าสูง ด้วยความแม่นยำ 0.2% และรอบการประมวลผล 0.3 วินาที รองรับการอินพุตแบบ Full Multi-Range พร้อมเอาต์พุต 2 ช่องสำหรับการทำความร้อนและการทำความเย็น
ข้อมูลเฉพาะ
ข้อมูลเฉพาะ
Input Specifications
Input Signal: Full multiple range input (Thermocouples, RTDs, Direct voltage/current)
Input Sampling Cycle: 300ms
Accuracy Rating: ±0.2%FS ±1digit
Control Specifications
Output Types: ON-OFF pulse output type, Current output type, SSR drive pulse type
General Specifications
Power Supply Voltage:
AC power supply model: 100V-240V AC 50/60Hz
DC power supply model: 24V AC、50/60Hz/24VDC
Power Consumption:
AC power supply model:12VA or less
DC power supply model: 12VA or less (24V AC) 8W or less (24V)
External Dimensions:

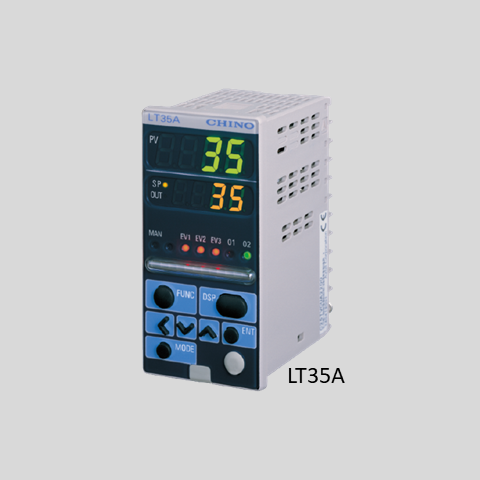

LT35A: W48×H96×D65mm

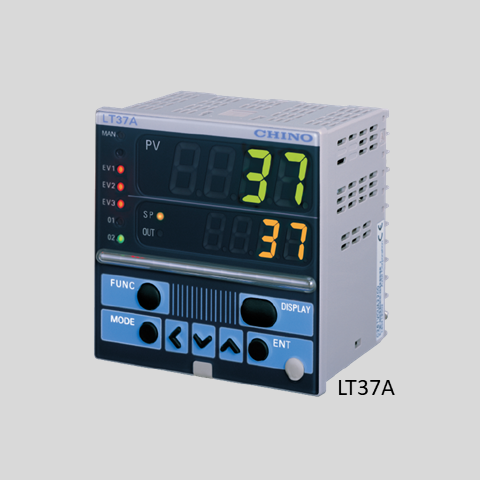

LT37A: W96×H96×D65mm
Weight:
LT35A: 250g
LT37A: 300g
