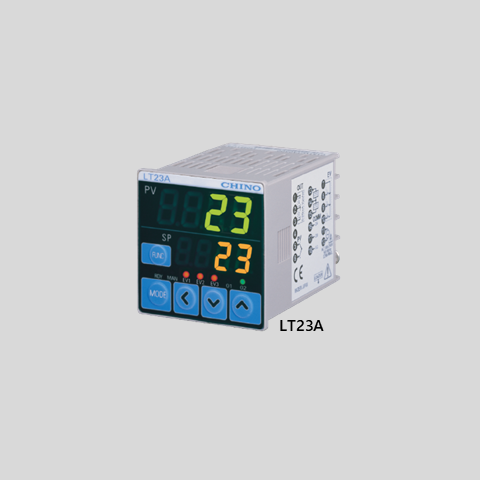

LT23A Digital Indicating Controller
LT23A Digital Indicating Controller
เครื่องควบคุมอุณหภูมิรุ่น LT23A, LT35A/LT37A และ LT45A/LT47A เป็นตัวควบคุมดิจิทัลที่ใช้การควบคุมแบบ PID พร้อมด้วยอัลกอริทึมแบบใหม่ “High Performance PID” และ “ฟังก์ชันป้องกันการเกิด Overshoot” แต่ละรุ่นสามารถตั้งค่าพารามิเตอร์ต่างๆ ได้หลากหลายแบบ และยังสามารถเก็บข้อมูลได้โดยใช้ซอฟต์แวร์ Loader อีกด้วย
Models |
Control Output 1 |
LT23A110000A00 |
ON-OFF pulse output |
LT23A150000A00 |
SSR drive pulse output |
LT23A130000A00 |
Current output |
คุณสมบัติ
คุณสมบัติ
ใช้งานง่ายและคุ้มค่ากับตัวควบคุมขนาดเล็ก
มีรูปแบบการติดตั้งให้เลือก 2 แบบ ได้แก่ แบบขั้วต่อสาย (Terminal Type) และแบบซ็อกเก็ต (Socket Type) พร้อมฟังก์ชันปรับจูนอัตโนมัติ 3 รูปแบบ และฟังก์ชันลดการเกิด Overshoot เพื่อการควบคุมที่มีความเสถียร นอกจากนี้ ยังมีฟังก์ชันการคำนวณภายในและตัวเลือกอินพุต/เอาต์พุตที่หลากหลาย ทำให้เหมาะสมกับการใช้งานในสถานการณ์ต่างๆ และมีซอฟต์แวร์ Loader ที่ช่วยให้การตั้งค่าและการรวบรวมข้อมูลทำได้อย่างง่ายดาย
ข้อมูลเฉพาะ
ข้อมูลเฉพาะ
Input Specifications
Input Signal: Select group according to the model
(Thermocouples, RTDs, Direct voltage/current)
Input Sampling Cycle: 500ms
Accuracy Rating: ±0.5%FS ±1digit
Control Specifications
Output Types: ON-OFF pulse output type, Current output type, SSR drive pulse type
General Specifications
Power Supply Voltage:
AC power supply model: 100V-240V AC 50/60Hz
DC power supply model: 24V AC、50/60Hz/24V DC
Power Consumption:
AC power supply model: 12VA or less
DC power supply model: 7VA or less (24V AC) 5W or less (24V)
Structure: IP66 (front part)
External Dimensions: W48×H48×D60mm
Weight:
Terminal block type: 150g
Socket type: 200g (including the socket)
