R000, R011, R030, R031 Gas/Air Temperature Sensors
This sensor using platinum resistance thermometer for the detecting element is a sensor for gas temperature measurement. Its compact, light-weight, and fast response structure achieve excellent responsiveness. Three types are available for laboratory use, industrial use and general indoor use to accommodate the various gas temperatures in a hot bath, in a warehouse, and general indoor. Catalog Catalog Request Inquiry Buy CHINO product online.
Models
|
Type |
Model |
Measuring temperature |
Tip Type |
Number of Element |
protective tube diameter (mm) |
|
Pt100 |
|||||
|
For Laboratory Use |

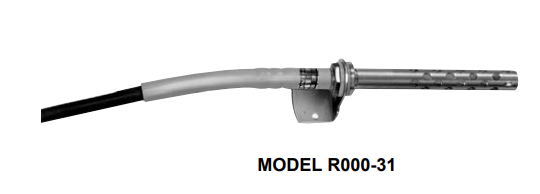

R000-31 |
-30 to 130°C |
Net type |
Single element |
φ12 |
|
R000-32 |
-50 to 150°C |
Closed type |
φ6 |
||
|
R000-31W |
-30 to 130°C |
Net type |
Double elements |
φ12 |
|
|
R000-32W |
-50 to 150°C |
Closed type |
φ6 |
||
|
For Industrial Use |
R011-3 |
-20 to 60°C |
Metal protective tube |
Single element |
φ6 |
|
R011-3W |
Double elements |
||||
|
For General Indoor Use |

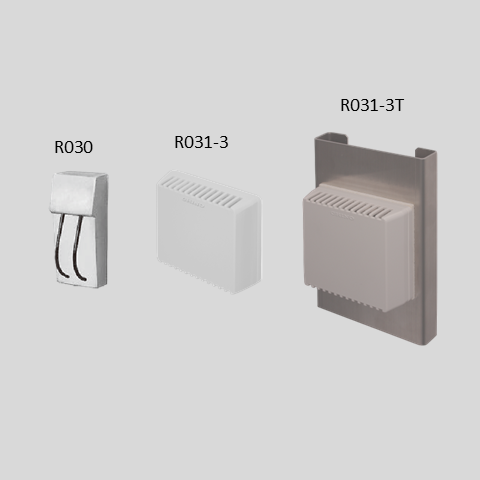

R030-3 |
-30 to 100°C |
- |
Single element |
φ2.5 |
|

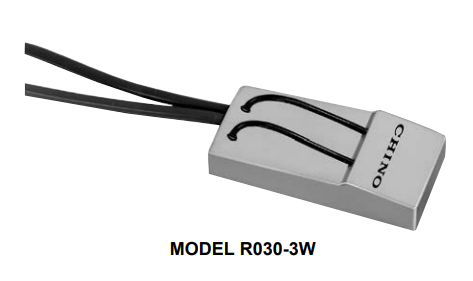

R030-3W |
Double elements |
||||
|
R031-3 |
-20 to 80°C |
Standard |
Single element |
- |
|
|

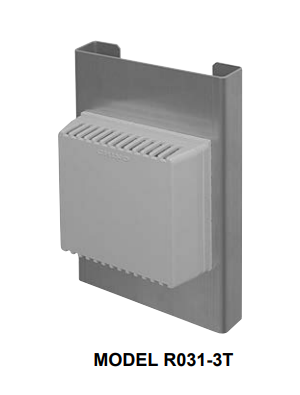

R031-3T |
With thermos plate |
*With 3m lead wire
Features
Features

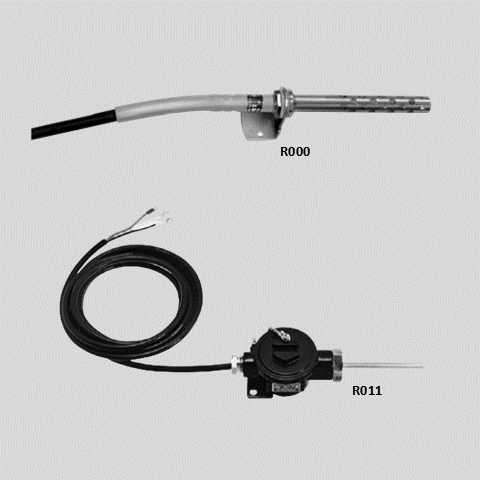

- Model R000
These small and light weight sensors are designed to measure temperature of gas/air, suitable for temperature measurement in thermostatic
bath, drying chambers, artificial environment, and climate chambers

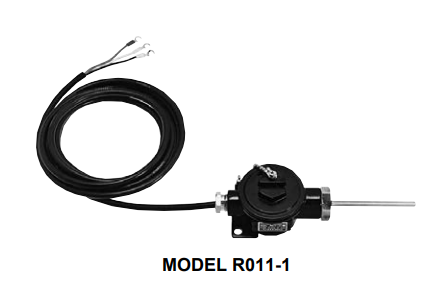

- Model R011
These sensors are suitable for temperature management of industrial use at general production work room and warehouse.
- Madel R030
These small, lightweight, and high responses are designed to measure temperature of gas/air, suitable for temperature management at high
humidity place or freezer compartment because of the waterproof structure.
- Model R031
This is for general indoor use, suitable for room temperature measurement in relatively severe air conditioning management as pharmaceutical
plant or blood storage center.
Since it has good response, the mounting has become easier to
set up on the wall according to JIS standards.
Thermo-plate type is available for to lessen the effect of wall surface temperature.
Specifications
Specifications
Resistance Element: Pt100, 100Ω at 0°C 3-wire
Tolerance: JIS class B, class A (Only class A for R031)
Rated Current: 2mA, 1mA (Only 1mA for R031)
Protective Tube Material:
R000-32, R011, R030: SUS304
R000-31: Nickel-plated brass
Responsiveness:
R000-31: Approx. 70sec.: in the air 50°C→20°C
R000-32: Approx. 3min.: in the air 50°C→20°C
R011: Approx. 50sec.: in the air 50°C→20°C
R030: Approx. 25sec.: in the air 50°C→20°C
R031: Approx. 50sec.: in the air 50°C→25°C
