C015 Series Non-Contact Type Roller Surface Thermocouples

C015 Series Simple Compensation Type Surface Temperature Sensor (Thermocouple) This sensor is none-contact type thermocouple for surface temperature measurement, which has a built-in circuit for compensate difference between surrounding air temperature and actual temperature of an object automatically. It is capable of measuring surface temperature of rotating roller, moving conveyor belt, and plastic sheet.

Type

Model

Measuring Range

Length of Extension Wire

Outline

Standard

C015-11

SAT* to 250°C

5m

Suitable for the measurement, which has relatively small disturbance in measuring surrounding condition and measuring distance is stable between 1 to 2mm.

C015-21

SAT* to 250°C

10m

C015-31

SAT* to 500°C

5m

C015-41

SAT* to 500°C

10m

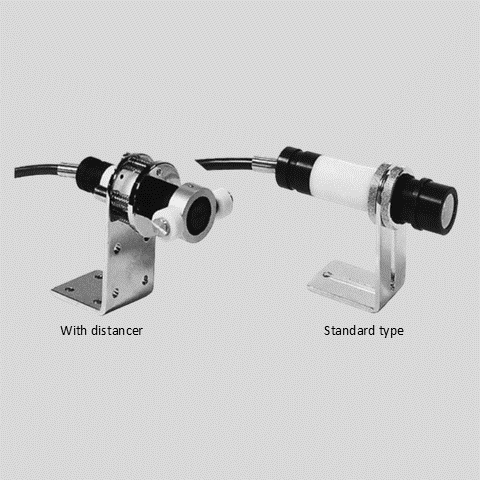

With distancer

C015-13

SAT* to 250°C

5m

Suitable for the surface temperature at which measuring distance fluctuates.

C015-23

SAT* to 250°C

10m

*SAT: Standard ambient temperature

Features

  • Non-contact temperature measurement from room temperature to 250c or 500c with a constant distance (1 to 2mm)
  • Accurate temperature measurement by automatic compensation for variation of object temperature and environmental by a stabilizing filter
  • No emissivity compensation for object material, surface
  • A K type thermocouple is used for a detecting element

Specifications

Sensor Element: K thermocouple

Wire Diameter: φ0.1mm

Measuring Range: Common type: SAT* to 250°C High temperature type: SAT* to 500°C

Ambient Temperature: Common type: max. 100°C High temperature type: max.230°C

Measuring Accuracy: ±5°C within measuring range 200°C When the compensating is given at about a half way of the measuring range.

Measuring Distance: 1 to 2 mm stable

Response Time: Approx. 6sec. (time constant)

Output Signal: Thermal EMF of K thermocouple

Output Impedance: 15 to 22Ω

Output Stabilizing Filter: Thickness 0.07 mm amber mica

Compensation Lead Wire: φ7mm heat-resisting vinyl lead wire or silicon rubber lead wire 5m (10m)

Specifications Sheet Download

C015 Series

View full details
