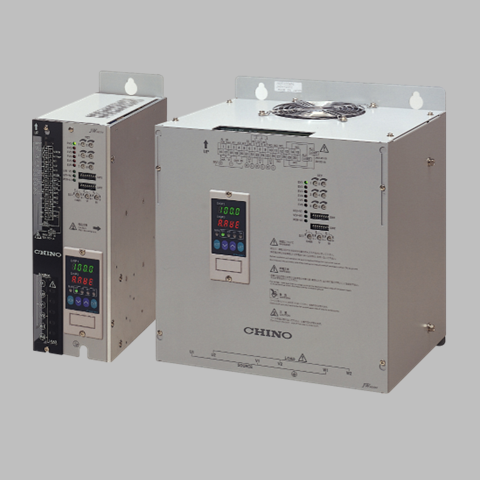

JW Series Three Phase Thyristor Regulator

JW series is three-phase thyristor regulator, which is compact, lightweight, and capable of high-density instrumentation. Controllability is improved using 6-arm control. For the control system, there are two systems available, phase control and zero-cross control which can be switched to use. For phase control system, there are: voltage, current, and power feedback types and no feedback type are available for selection according to heater characteristics.

Models

Control System

Fast acting fuse

Models

Phase control･Voltage feedback type/Zero-cross control

Built-in

JW20030VA006

Phase control･Current feedback type/Zero-cross control

JW20030AA006

Phase control･Power feedback type/Zero-cross control

JW20030WA006

Phase control･No feedback/Zero-cross control

JW20030NA006

Zero-cross control

JW20030ZA006

Phase control･Voltage feedback type/Zero-cross control

None

JW20030VN006

Phase control･Current feedback type/Zero-cross control

JW20030AN006

Phase control･Power feedback type/Zero-cross control

JW20030WN006

Phase control･No feedback /Zero-cross control

JW20030NN006

Zero-cross control

JW20030ZN006

 *If power supply voltage: 200V and rated current: 30A



Features

  • Compact all-in-one structure A slim structure with a narrow width achieves high panel installation density.
  • Setting communication unit (option) is available Displaying present voltage value, current value and power value, parameter setting and operation switching are available.
  • Disconnection alarm and current limit are equipped as standard.
  • Ample protective functions Various protective functions are offered: thyristor gate-off at over-current, blow out fast acting fuse at load short circuit, and thyristor gate-off at heat sink overheat. Alarm functions convenient for three-phase control such as phase sequence abnormality alarm and phase drop alarm are equipped.

Specifications

Phase: Three-Phase

Rated Voltage: 460V AC 480V AC to be specified (main circuit power supply and control circuit power supply is shared power supply) *External transformer specification is available for 400V specifications

Rated Current: 10A, 20A, 30A, 50A, 75A, 100A, 150A, 200A, 250A, 300A, 400A, 500A to be specified

Rated Frequency: 50/60Hz (auto switch)

Control System: Phase control, Zero-cross control

Feedback Type: Voltage, current, and power feedback

External Setting Input: Potentiometer signal (10kΩ is recommended)

External Contact Input: External signal non-voltage contacts or open collector (External contact capacity 5mA 5V DC or more)

External CT Input: 0 to 5A AC to the rated current

Working Temperature Range: -10 to 55°C

Working Humidity Range: 30 to 90%RH no dew condensation

Weight･external Dimensions:

10A, 20A  Approx. 5kg H325×W100×D190mm

30A, 50A Approx. 8kg H325×W200×D200mm

75A, 100A Approx.13kg H325×W288×D220mm

150A, 250A Approx.22kg H 325×W420×D240mm

300A, 500A Approx.36kg H495×W420×D240mm

Installation Method: Panel flush-mount
