IR-FL5NN02 (for IR-FA series)
IR-FL5NN02 (for IR-FA series)
Fiber with Lens assembly (For IR-FA series)
IR-FA series is an optical fiber transmission type radiation thermometer. Measurement light (radiant energy) captured by a size of a pinky, small lens assembly is led to a detecting element stored in a small box type thermometer. With small lens assembly and flexible optical fiber transmission, this thermometer is useful for measurements of a place where direct view is impossible or a narrow place, and a place where inductive interference occurs electrically.
|
Product Details |
|
|
Type |
Two-color type |
|

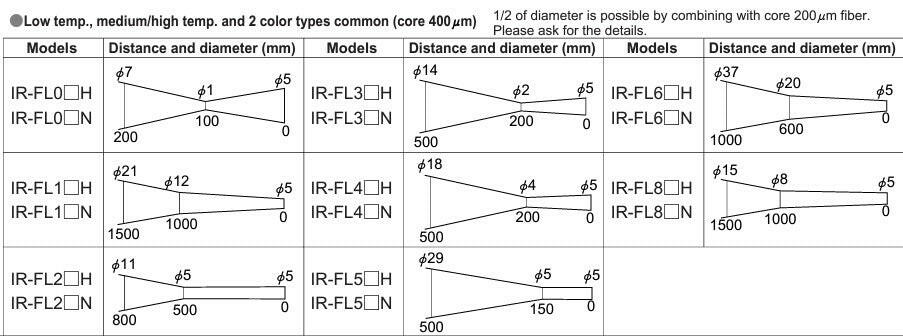

Distance and Diameter (Refer to “Distance/Dimeter) |
φ5mm. for 150 mm. |
|
Fiber Sheath |
With metallic protective tube (Core 400mμ) |
|
Fiber length |
2 m. |
* Main Unit is sold separately
Features
Features
- Optical fiber can be used without cooling up to 150°C.
- Optical fiber does not have electrical conduction so it is applicable for induction heating and explosion proof atmosphere.
- Laser targeting option is available for checking measuring point.
- Thermometer is compact, light weight, and DIN rail installation available.
- For low temperature, for medium to high temperature, and two-color type etc. various types are available.
Specifications
Specifications
Fiber optic
Core diameter 400μm
Fiber: Single core quartz fiber
Sheath: Without metal protective tube (Heat-resistive sheath/glass wool braided)
With metal protective tube (Heat-resistive sheath/glass wool braided flexible tube)
Working Temperature: 0 to 150°C
Length: For low temperature type･･･2m, 4m, 5m
For medium to high temperature･Two-color
types･･･2m, 4m, 5m, 10m, 15m, 20m
Allowable Bending Radius: R100mm
