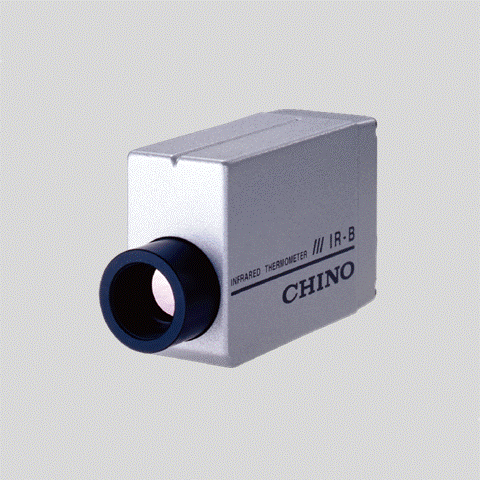

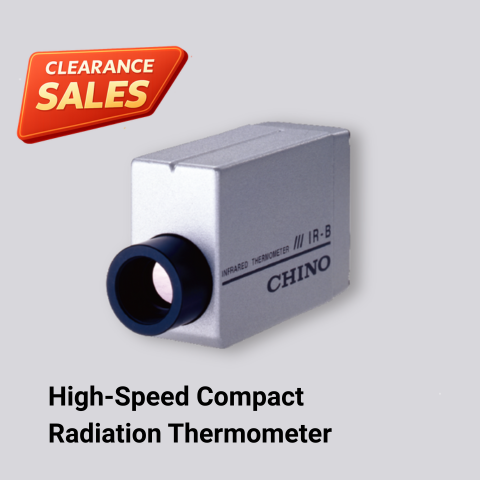

IR-BATSBE (0-600°C)

IR-BATSBE (0-600°C)

30,000.00 ฿
30,000.00 ฿
Sale Sold out
Request for Quotation

Small Infrared Radiation Thermometer

The IR-BA series is a relatively low-priced small radiation thermometer with emissivity compensation and analog output of measured values. Its compact card size does not take up much installation space and is convenient for incorporating into equipment.

Measurement Temperature Range: 0-600°C
Detecting Element: Thermopile
Wavelength: 8-14μm
Response time: 0.5s

Features

Compact design that can be incorporated into low temperature measurement equipment

  • Radiation thermometer that can measure a wide range from 0℃ to 600℃. Simple operation with only emissivity setting, compact size.

Other features

  • High-speed response: 100ms for general-purpose type, 50ms for high-speed specifications
  • Compact and small (W32 x H56 x D100mm), lightweight (220g)
  • Integrated type with built-in detection and conversion functions. Output is 4 to 20mA DC.
  • Improved ambient temperature compensation accuracy
  • Digital switch for precise emissivity setting
  • Peripheral equipment such as powered indicator and protective case are available
  • CE marking compliant

Specifications

  • General-purpose, small diameter, long distance type
  • Detecting element: Thermopile
  • Wavelength: 8～14μm
  • Measurement temperature range: 0～600℃
  • Accuracy ratings: Below 300℃: ±3℃, 300℃ or higher: ±1% of
    measured value, (ε ≒ 1, under reference operating condition)
  • Repeatability: ±0.3℃ (JIS display)
  • Resolution: 0.5℃ (JIS display)
  • Response time: 0.1s
  • Measurement diameter/measurement distance: φ40/500mm
  • Output Signal: 4 to 20mA DC (no resistance 280Ω or less)
  • Power supply: 12-24V DC
  • Power consumption: 60mA or less
  • External dimensions: W100xH56xD32mm
  • Weight : About 220g
  • Others: CE marking compliant

Specifications Sheet Download

IR-BAT Series
