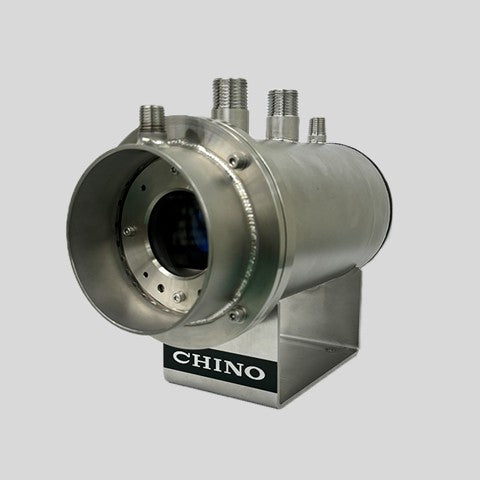

High Temperature Thermal Camera CPA-RA

High Temperature Thermal Camera CPA-RA

0.00 ฿
0.00 ฿
Sale Sold out
Request for Quotation

 CPA-RA Series High Thermal Image Measurement

The CPA-RA series can be used to monitor the temperature of steel materials, molten steel, baking furnaces, etc. over a wide temperature range. The water-cooled case ensures durability in harsh environments.

Measurement temperature range: 700 to 1450℃ or 1200 to 2550℃

Wavelength: 0.9μm

Model list

Product

Model

Specifications

Main unit

CPA-RAS1AN

Lens 10°

CPA-RAS2AN

Lens 20°

CPA-RAS3AN

Lens 30°

CPA-RAS4AN

Lens 40°

Accessories

Replacement cover glass

CPY-ZRCWS

Air Cooler

Air Cooler

CPY-ZRAC

Software

High temperature thermal image measurement software

CPY-VXGR

Features

Used for high temperature monitoring

  • Wide temperature range that can measure up to 2550℃ (temperature range can be changed by software operation)
  • Uses near infrared light, allowing measurements through a window
  • Clear images with high pixel (720 x 540)
  • PoE simplifies wiring
  • Measurement possible with multiple units (up to 4 units)

Specifications

  • Wavelength: 0.9μm
  • Number of pixels: 720×540
  • Temperature range: 700 to 1450ºC or 1200 to 2550 ºC, span 250 to 700 ºC※1
  • Accuracy ratings: ±2% of measured value
  • Frame rate: 30Hz※2
  • Field of view angle: 10°、20°、30°、40°
  • Power supply: PoE

*1 Customization outside the standard range is available.

*2 Varies depending on operating environment and operating
conditions.
