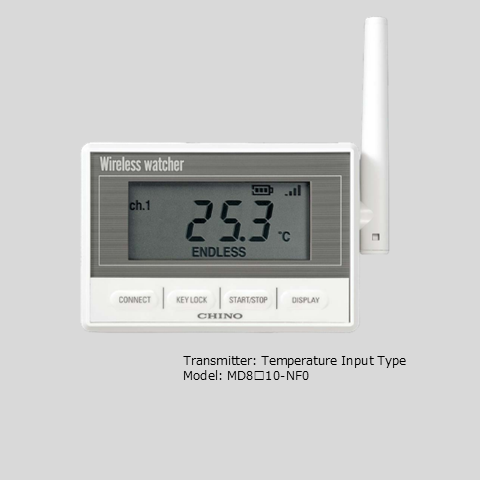

MD8000 Series (Temperature Input Type)
MD8000 Series (Temperature Input Type)
MD8000 Series (Temperature Input Type)
Wireless Data Logger with Monitoring Function(Ethernet Connection) It is a system that wirelessly transmits measurement data (temperature/humidity/voltage) from up to 360 transmitters, collects it on a computer via a receiver, and monitors alarms. The receiver can output alarms and send emails.
|
Model |
Power supply |
|
MD8010-NF0 |
2 AA Battery type |
|
MD8110-NF0 |
220VAC |
คุณสมบัติ
คุณสมบัติ
- Collect and monitor data from distributed transmitters via a receiver and a PC.
- Transmitters are available for temperature (thermistor), temperature and humidity, thermocouple input, RTD input, and voltage measurement models (with scaling function).
- Centralized management of up to 360 transmitters using a single PC (with 6 receivers).
- Wireless transmission range: approximately 100m indoors and 400m outdoors. Transmitters can be used as repeaters, allowing up to 6 levels of relays.
- Standard features include an email notification function and 3 alarm outputs on the receiver.
- Inspection reports are included as standard for transmitters.
- Dedicated application software simplifies system setup, including adding or removing transmitters.
ข้อมูลเฉพาะ
ข้อมูลเฉพาะ
Measurement range: -10.0 to
50.0°C
Accuracy: ±0.3°C ±1 digit (20 to 30°C)
±0.5°C ±1 digit (Other)
Memory capacity: 16,000 data/ channel
Recording Interval: 5 seconds to 3 hours
Communication method: Specific low power radio (429MHz Band)
Power supply: 2 AA battery Type, 220VAC Type
