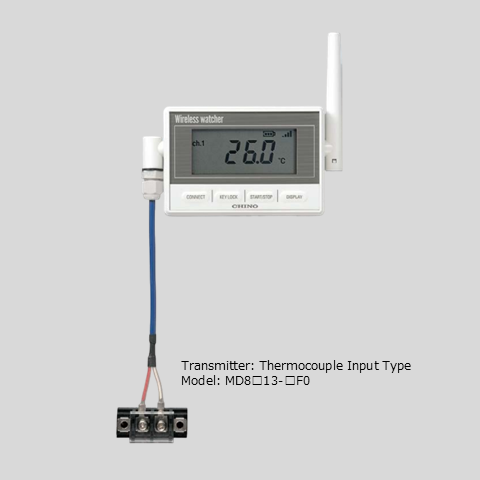

MD8000 Series (Thermocouple Input Type)
MD8000 Series (Thermocouple Input Type)
MD8000 Series (Thermocouple Input Type)
Wireless Data Logger with Monitoring Function(Ethernet Connection) It is a system that wirelessly transmits measurement data (temperature/humidity/voltage) from up to 360 transmitters, collects it on a computer via a receiver, and monitors alarms. The receiver can output alarms and send emails.
Model |
Power Supply |
Thermocouple Type |
MD80013-KF0 |
2 AA Battery type |
Type K |
MD81013-TF0 |
220VAC |
Type T |
*Please select model no. in Request quotation form
คุณสมบัติ
คุณสมบัติ
- Collect and monitor data from distributed transmitters via a receiver and a PC.
- Transmitters are available for temperature (thermistor), temperature and humidity, thermocouple input, RTD input, and voltage measurement models (with scaling function).
- Centralized management of up to 360 transmitters using a single PC (with 6 receivers).
- Wireless transmission range: approximately 100m indoors and 400m outdoors. Transmitters can be used as repeaters, allowing up to 6 levels of relays.
- Standard features include an email notification function and 3 alarm outputs on the receiver.
- Inspection reports are included as standard for transmitters.
- Dedicated application software simplifies system setup, including adding or removing transmitters.
ข้อมูลเฉพาะ
ข้อมูลเฉพาะ
Measurement range:
K type: -200 to 800°C
T type: -200 to 400°C
Accuracy: K/T type ±0.1% RDG 0.5 C (0 to 40°C ambient temp.)
Resolution: 0.1°C
Memory capacity: 16,000 data/ channel
Recording Interval: 5 seconds to 3 hours
Communication method: Specific low power radio (429MHz Band)
Power supply: 2 AA battery Type, 220VAC Type
