Headless Type Resistance Thermometers (General Type) R005
This sensor is headless type platinum resistance thermometers and is available in four types,i.e., general type, heat resistant type, quick response type and waterproof type.
Models
|
Type |
Model |
Tip Shape |
Lead Wire |
Length(mm) |
|
|
Pt100 |
JPt100 |
||||
|
Standard Type |

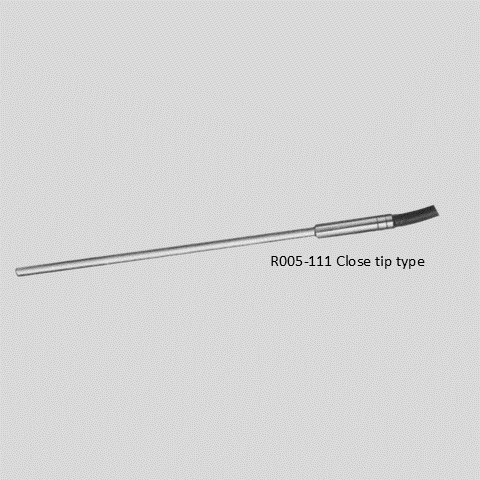

R005-311 |
R005-111 |
Closed Type |
Vinyl covered wire 5m |
100 |
|
200 |
|||||
|
300 |
|||||
|
500 |
|||||
|
R005-312 |
R005-112 |
Open Type |
Vinyl covered wire 5m |
100 |
|
|
200 |
|||||
|
300 |
|||||
|
500 |
|||||
|
Heat Resistant Type |
R005-321 |
R005-121 |
Closed Type |
Polymide and glass wool braided wire 5m |
100 |
|
200 |
|||||
|
300 |
|||||
|
500 |
|||||
|
R005-322 |
R005-122 |
Open Type |
Polymide and glass wool braided wire 5m |
100 |
|
|
200 |
|||||
|
300 |
|||||
|
500 |
|||||
|
Quick Response Type |
R005-331 |
R005-131 |
Closed Type |
Vinyl covered wire 5m |
100 |
|
200 |
|||||
|
300 |
|||||
|
Waterproof Type |

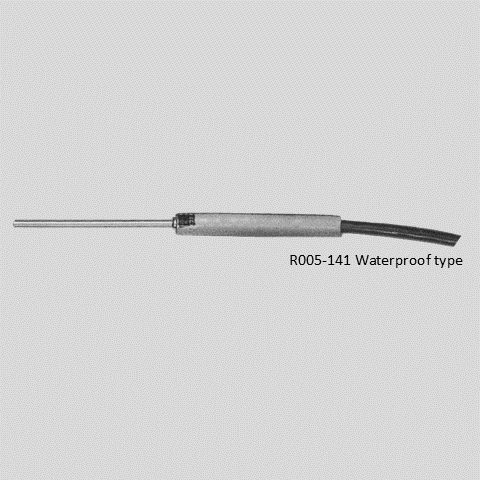

R005-341 |
R005-141 |
Closed Type |
Vinyl covered wire 5m |
100 |
|
200 |
|||||
|
300 |
|||||
|
500 |
|||||
Features
Features
- This sensor is headless type platinum resistance thermometers and is available in four types, i.e., general type, heat resistant type, quick response type and waterproof type.
Specifications
Specifications
Element: Pt100, JPY100 (100Ω at 0°C) three wire type
Rated current: PT100(Ø1.01mA, Ø1.6mA), JPY100 (Class B 5mA, Class A 2mA)
Class: JIS class B, class A
Range: Standard & Heat-Resistant Type 0 to 350°C, Quick Response & Waterproof type (-)50 to 150°C
Dia. of protective tube: Ø6, except quick response type is Ø3.2
Length of protective tube: 100, 200, 300, 500mm
Material of protective tube: SUS304 (standard), SUS316, titanium, etc.
Sleeve part heat resistant temp.: 60°C, except heat resistant type is 200°C
