Sensor: NR Series

Sensor: NR Series

NR Series Sheathed Resistance Thermometers

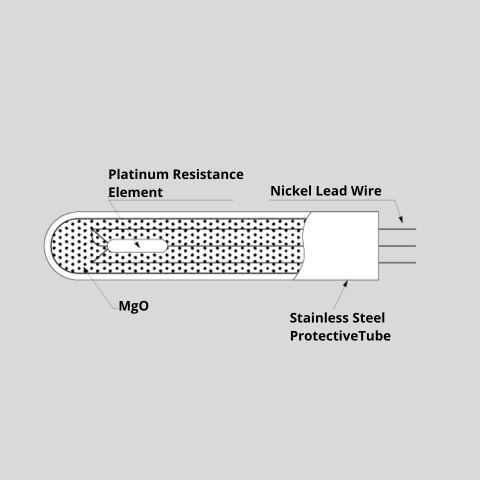

Sheathed resistance thermometer is sealed and filled with a powder of inorganic insulator (highly pure magnesium oxide) inside metal protective tube (sheath) with a platinum resistance element. It is excellent in insulation, sealing, and vibration resistance.

Models

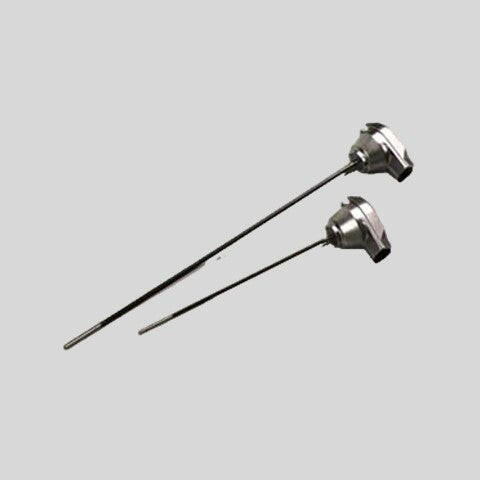

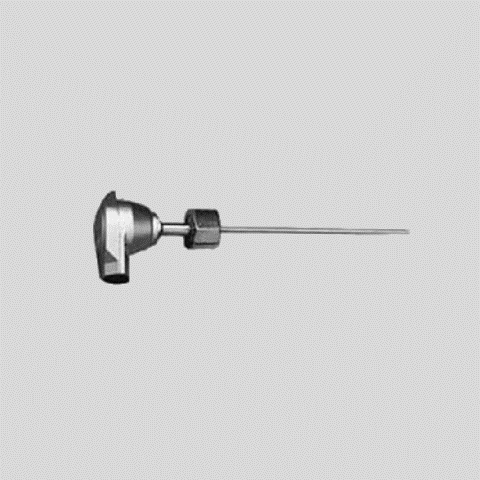

Z-Terminal Box Type

NRZS1-0

Headless Type

NRHS1-0


Features

  • The protective tube has excellent corrosion resistance due to the elimination of the internal air layer
  • The sensor provides high sensitivity and excellent response corresponding to 2-3 times that of ordinary resistance thermometers
  • The sensor is resistant to vibrations and mechanical shock
  • The Z-type terminal head with a hatch structure ensures easy cable connections

Specifications

Element: Pt100, JPt100 3-wire type

Tolerance: JIS class A, B

Measuring Current: 2mA, 1mA

Measuring Temperature: -200 to 500°C

Protective Tube Material: SUS316

Protective Tube Outer Diameter: φ3.2, φ4.8, φ6.4, φ8mm

Protective Tube Length: 300 to 2000mm

Tip Type: Closed type

Bending Radius: 2 to 3 times or more of protective tube outer diameter

Bending Banded Area: From top 100mm

Mounting Bracket: Impossible to mount within 70mm from top

Filing: Highly pure magnesia MgO

Double Elements Protective Tube Outer Diameter: φ3.2, φ4.8, φ6.4, φ8mm
