Solid Pack Thermocouple NC

Name: Solid Pack Thermocouple NC
Brand: CHINO Corporation Thailand
Availability: InStock

Solid Pack Thermocouple NC

0.00 ฿

Sale Sold out

Request for Quotation

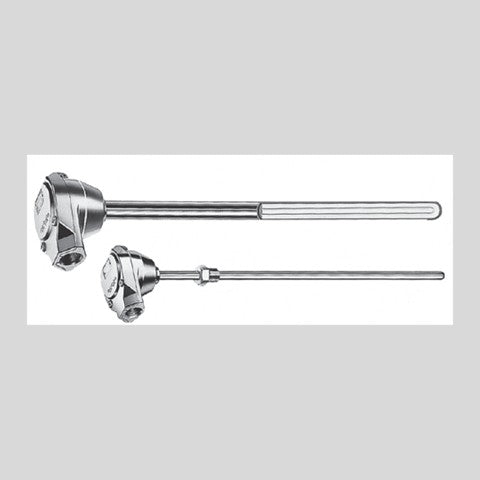

Solidpak thermocouples are φ10 to 22mm large diameter protective tube with the high performance thermocouples that feature high sensitivity, and robustness required in a general industrial sensor. Gap between the protective tube and the thermocouple wire is densely filled with magnesium oxide. The thick protective tube provides durability in long-term continuous operation in high temperature, unfavorable environment.

Model

Z-Terminal Box Type

NCZS1-0

Normal Working Limit

Type of Thermocouple	Material	Outer Diameter
Type of Thermocouple	Material	φ10	φ15	φ22
K	SUS316	900°C	1000°C	1000°C
	SUS310S	1150°C	1150°C	1200°C
	SUH446	–	–	1200°C
	Sandvik 253MA	–	–	1200°C

*Please request model no.

Features

The air tight protective tube provides excellent heat resistance, corrosion resistance and long life.
Sensitivity and response are 6 to 10 times that of ordinary thermocouples.
The Solidpak structure resists vibration and mechanical shock. Since it can be bent, an L-type thermocouple with out an elbow is available.
The terminal head assures easy connection to extension wires.
A double-element thermocouple is also available
