MF1000 Digital Thermometer For Foods

The portable thermometer Model MF1000 is combined with a needle type sensor for measurement of internal temperature of foods or liquid temperature. The indicator and the sensor grip with anti-bacteria surface housing are washable (IP67 – waterproof and dustproof). The thermometer designed to use in food processing fields is recommended to use for temperature monitoring in HACCP.

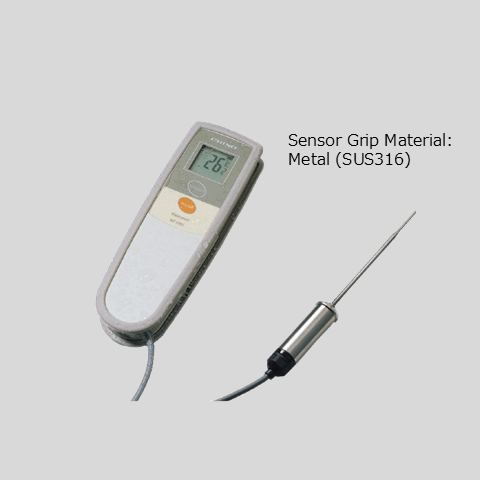

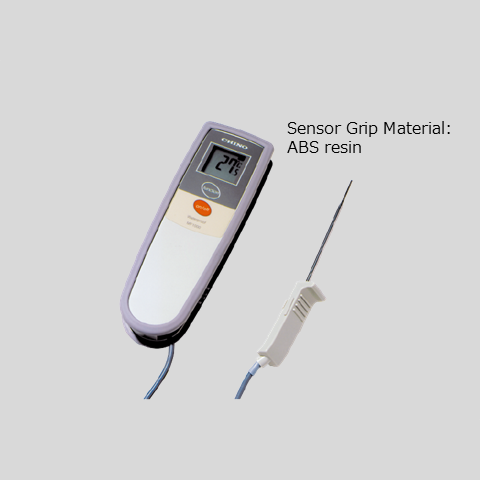

Sensor Grip Material

Model

ABS resin

MF1000

Metal (SUS316)

MF1000-M

Features

  • Wide temperature range of -40 to 260°C
  • High accuracy of ±0.5°C, high-speed response of 2 seconds
  • Easy to use in your hand with the sensor fit to the backside of the thermometer
  • Conforms to IP67 (dustproof and waterproof) and washable.
  • Anti-bacteria ABS resin housing fits in your safety program.
  • Enables to store the sensor with cable to the thermometer for easy carrying
  • 500 hours working with auto-power-off function built in.

Specifications

Temperature range: -40 to 260°C

Measuring accuracy: ±0.5°C (at the
ambient temperature of 0 to 50°C)

Response time: 2 seconds (0°C water,
90% response)

Sensor: K type thermocouple, metal
protective tube type

Junction type: Grounded junction type

Display: LCD, 3-1/2digit, Character
height 12.7mm

Display resolution: 0.1°C (-40.0 to
99.9°C), 1°C (100 to 260°C)

Working environment:

Ambient temperature: 0 to 50°C

Ambient humidity:  0 to 90%RH (no dew condensation)

Power supply: 006P battery (9V), 1 piece

Battery life: 500 hours (continuous
working at 25 °C)

Auto-power-off: Automatic-power-off
after 5 minutes (Power-off by a key is enabled.)

Case material: ABS resin (anti-bacteria)

Protector: Elastomer

Grip material: ABS resin (anti-bacteria)

Sensor cable: Silicone sheath extension wire

Weight: About 165g (excluding a battery)

Accessories: Belt-clip, battery
