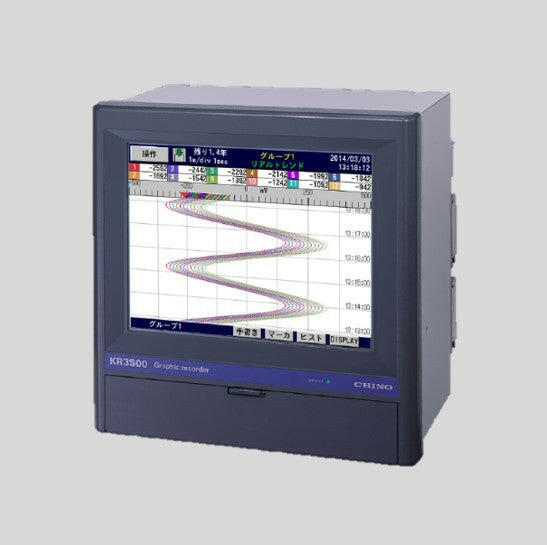

KR3S Series Graphic Recorder
KR3S00 series are network compatible advanced paperless Graphic Recorder with high performance and high operating function along with high visibility 10.4″ TFT color LCD touch-screen display. Universal input with high speed of sampling rate 1sec. and high accuracy rating of ±0.1% realized. Measured data is stored into memory and supported up to 8GB through USB and CF card. As it can be monitored by a web browser display on several computers on intranet or internet, FTP transfer of data file and E-mail notification are also available.
|
Product Details |
|
|
Measurement point |
61 Input 36 points/1 sec. |
|
Communication interface |
Ethernet +Low/High order communication (RS485) (Standard) |
|
Alarm output |
None |
|
Installation type |
Panel mounting type |
|
Other (option) |
None |
Features
Features
- Adopting clear 10.4″ TFT color LCD display
- Large capacity of data memory and various recording method
- Multi points stable recording with high speed/accuracy
- Easy operating and programming without manual
Specifications
Specifications
Input Specifications
Measuring Point: 6 points, 12 points, 36 points, 48 points
Input Type: Universal
Universal DC voltage: ±13.8mV, ±27.6mV, ±69.0mV, ±200mV, ±500mV, ±2V, ±5V*, ±10V*,±20V*, ±50V* (*with built-in voltage divider)
DC current: With external shunt resistor (sold separately)
Thermocouple: B, R, S, K, E, J, T, N, PtRh40-PtRh20, W-WRe26, WRe5-WRe26, PlatinelII, NiMo- Ni, CR-AuFe, U, L
Resistance thermometer: Pt100, JPt100, Pt50, Pt-Co
Sampling Rate: Approximately 1sec./ 48 points
General Specifications
Rated Power Supply Voltage: 100 to 240V AC (universal power supply), 50/60Hz
Max Power Consumption: 60VA
Mounting: Panel mounting
Weight: Approximately 5.6kg (at maximum)
