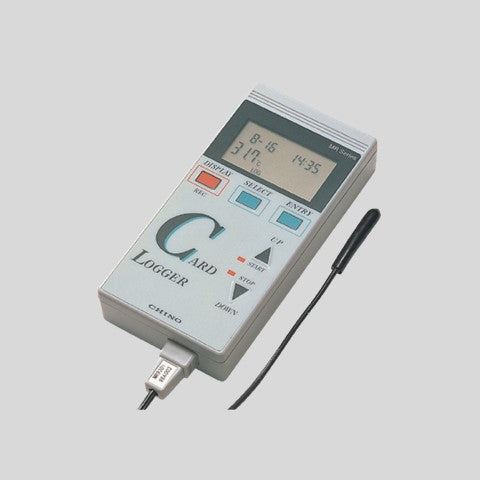

Card Loggers - MR6662 Series

• ±0.5°C (between -5 to 50°C) of high accuracy
• Logging data can be stored even in dead battery
• Conform to the CE marking safety standard of Europe

Measuring Range: Temperature: -30 to 60°C, Humidity: 0 to 100%RH (No dew condensation)

Accuracy Rating:

Temperature: ±0.5°C (-5 to 50°C), ±1°C (other than temperature indicated on the left)

Humidity: ±3%RH (at 25°C ±2°C/0 to 90%RH)

*Accuracy is not guaranteed for other than 5 to 60°C, and 90%RH or more

Temperature factor ±0.1%RH/°C (5 to 60°C)

Input Point: Temperature 1 point, Humidity 1 point

Number of Logging Data: 6,000 data each for
temperature and humidity (Approx. 40 days worth of data storage at 10min. interval measurement)

Communication Function: It comes as standard.

Connect to the PC is available through data reader (sold separately).

Display: Reflection type LCD

Display Contents:

Current Data: Month, day, hour, minuet, temperature (°C), and humidity (%RH)

Recalling Data:

1. Data being stored per month, day, hour, and minute

2. Highest temperature/humidity, lowest
temperature/humidity, and average temperature/humidity

Parameters:

1. Clock: Year, month, day, hour, and minute (Corresponding to leap years)

2. Start time: Month, day, hour, and minute

3. Logging interval: 1 to 60min. (An interval can be set from 1min.)

4. High/low limit alarm values

Alarm:  “ALARM” is displayed at alarm activation.

Working Environment:

Logger: -20 to 55°C, Temperature/humidity sensor: -30 to 60°C (No dew condensation)

External Dimensions:

Logger: W54×H110×D20.4mm

Sensor: W18×H53×D11mm

Material/Weight:

Material: ABS resin (both the logger and the sensor)

Weight: Approx. 95g (including batteries)

Power Supply: Alkaline battery LR03 (AAA), 2pcs,
Battery life: Approx. 1 year (at 25°C, 10min. logging interval)

MR Series
