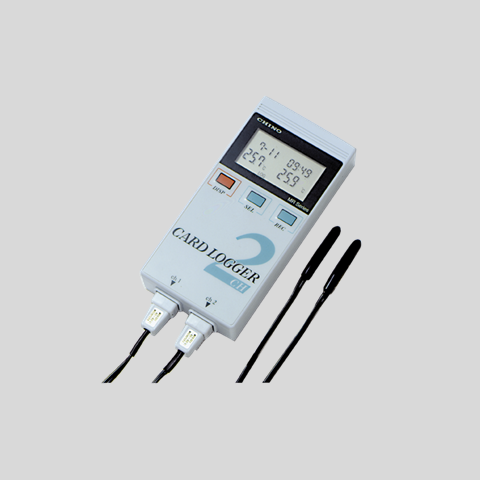

Card Loggers - MR5320 Series

• Number of logging data is 6,000 data each for channels.
• Measurement interval can be selected between 10 to 50sec. and 1 to 60min
• ±0.5°C (between -5to 50°C) of high accuracy
• Logging data can be stored even in dead battery
• Dust tight and splash proof structure, so it is washable (IP64). Conform to the CE marking safety standard of Europe
• Various external sensors: general type, waterproof type, and needle type etc. are available

Measuring Range: -40 to 60°C, 0 to 100°C, 50 to 150°C (Ranges are automatically switched by identifying a sensor to be used.) *Only channel 1 has built-in sensor, measuring range is -20 to 55°C

Accuracy Rating: ±0.5°C ±1digit (in a range of -5 to
50°C) *±1.0°C ±1digit of other than above.

Input Point: 2 points

Number of Logging Data: 6000 data for each channel

Temperature Sensor: Built-in (channel 1 only)/External sensor switching

*Various external sensors (sold separately): general type, waterproof tube, needle type and surface temperature measuring type etc. are
available.

Display Contents (Each channel):

Current data=Month, day, hour, minute and measuring
temperature

Recalling data=Highest, and lowest temperatures in logging period, and average temperature in the logger

Setting parameter=High and low limit alarm set values.

Operation Available in the Logger: Display start-up
(with auto-off function: Display goes out after one minute when no operation is performed.)

Display content selection (clock setting, logging
start/stop, keylock set/release)

*Three function keys of DISP, SEL, and REC.

Communication Function:

Communication with an exclusive data reader (sold
separately) through near-infrared radiation.

Parameter setting, and recalling logger data and logging condition by exclusive analysis software.

Setting in PC (Dedicated Analysis Software): Clock,
logging start time/stop time (for logging interval unit: min.), measurement/logging interval (10 to 50 sec. or 1 to 60min.), high/low limit alarm temperatures, keylock of the logger, and logging method (automatic stop/endless)

Power Supply: Alkaline battery R03 (AAA), 2pcs

External Dimensions/Weight: W54×H110×D20.5mm, approx. 95g (including batteries)
