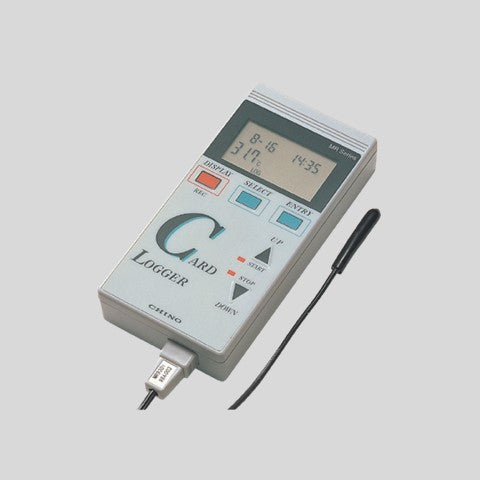

Card Loggers - MR5300 Series

• IP64, dust tight and splash proof structure, so it is washable
• Conform to the CE marking
• ±0.5°C (between -5to 50°C) of high accuracy
• Compact, lightweight and easy operation
• Acquired data can be stored for a long time on dead battery
• Stored data can be checked on the logger during data logging
• Measurement interval is 10 to 50sec. or 1 to 60min. available to set freely

Measuring Range: -40 to 60°C, 0 to 100°C, 50 to 150°C (0 to 50°C is only available for display) (A sensor in use is automatically identified and the range
is switched)

Accuracy Rating: ±1.0°C ±1digit (Within a rang -5 to
50°C is ±0.5°C ±1digit)

Temperature Sensor: Built-in/External sensor
switching (It switches automatically when external sensor is inserted, measuring range of the built-in sensor is -20 to 55°C)

Input Point: 1 point

Number of Logging Data: 6,000 data (Approx. 8 months worth of data storage at 60min. interval measurement)

Logging Method: Auto stop mode at specified condition or endless mode set at PC.

Communication Function: It comes as standard. Connect to the PC through data reader (sold separately).

Display: Reflection type LCD

Display Contents: Current Data: Month, day, hour, minute, and temperature (°C)

Recalling Data: Data being stored per month, day,
hour, minute, or the following data in the logger

Integration data (°CH), which is set reference temperature or lower (L) or higher (H)

Number of higher or lower limit activated alarms and month, day, hour, minute, and temperature of activated alarm

Highest, lowest, and average temperatures

Parameters:

Clock: Year, month, day, hour, and minute (Corresponding to leap years)

Start time: Month, day, hour, and minute

Measurement interval: 1 to 60min. (1-minute resolution) or 10 to 50sec. (10-second resolution)

Reference temperature: Reference temperature for temperature integration calculation

Integration Function: H integration or L integration

Alarm: High limit or low limit alarm

Power Supply:

Battery type: R03 (AAA), 2pcs

Battery life: Approx. 1 year (Recording at 25°C, 1min.
interval)

Working Temperature/Humidity Range: -20 to 55°C, 10 to 80%RH (No dew condensation)

Storage Environment: -20 to 55°C, 90%RH or lower (No dew condensation)

Case Protection Structure: IP64 (Washable)

Case Material/Color: ABS resin, PANTONE® color (552C equivalent)

External Dimensions/Weight: W54×H110×D20.5mm, Approx. 95g (including batteries)

Remark: Various sensors besides general (sensing element and lead wire, sensor holder, total length approx. 600mm), various sensors: with waterproof tube, extension lead wire, metal protection tube, metal protection tube (sanitary specifications), and needle type temperature sensor are available.
