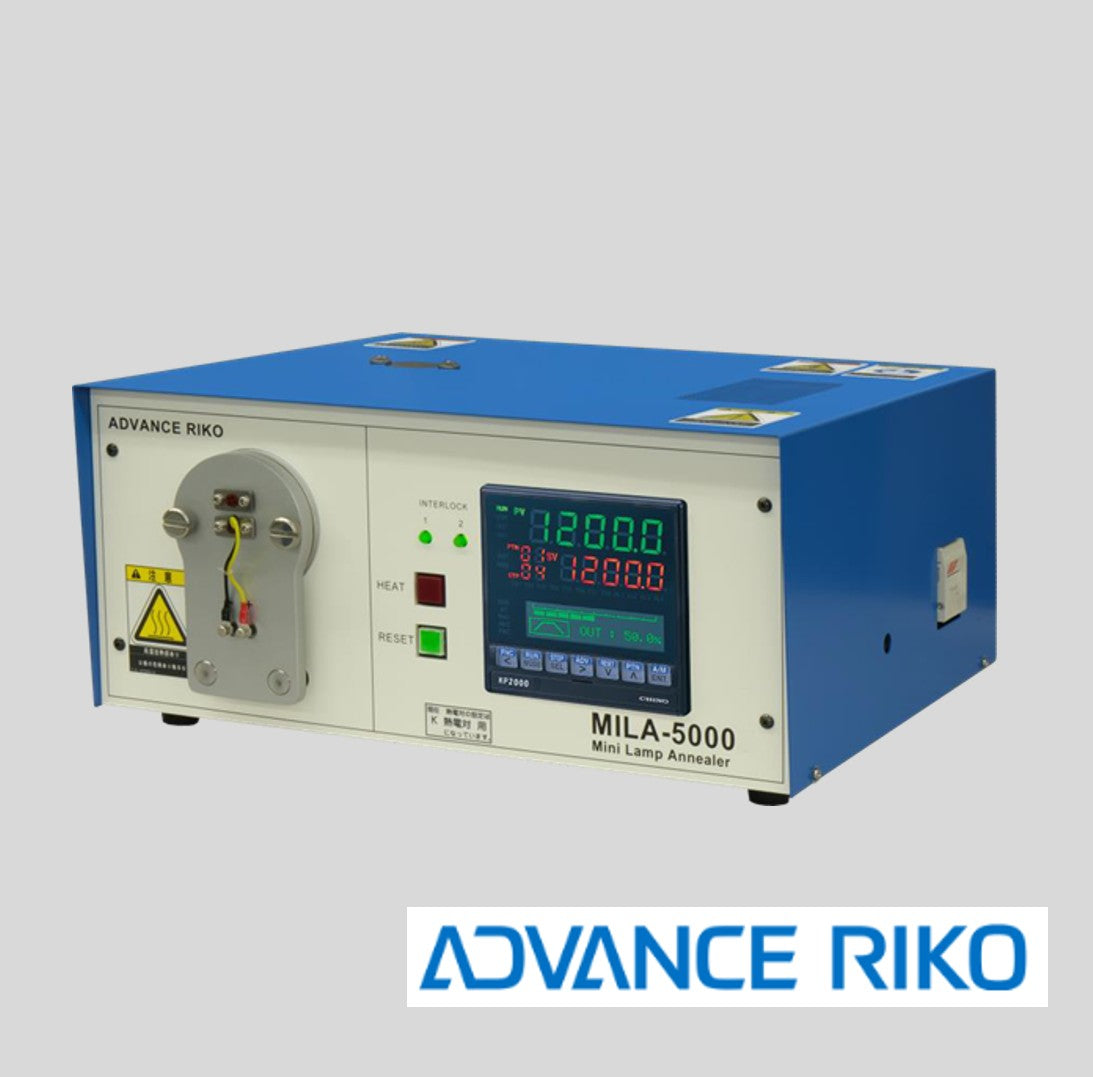

Mini Lamp Annealer MILA-5000 series

Mini Lamp Annealer MILA-5000 series

0.00 ฿
0.00 ฿
Sale Sold out
Request for Quotation

MILA-5000 series
The MILA-5000 series can perform high speed heating, high speed cooling, and clean heating, which are characteristics of the Infrared Gold Image Furnace. It can heat materials under adjustable atmospheres and combines a temperature controller and variable atmosphere chamber into a single low-cost infrared lamp heating system. Heating operations can be run by a PC connected via USB and data can be easily managed.

MILA-5000UHV
Based on the MILA-5000-P-N (high temperature type), the MILA-5000UHV was born as a concept that supports a high vacuum and adds to MILA-5000 series features such as high speed heating and cooling, precise temperature control, clean heating, and flexible atmosphere selection. Heating operations can be run by a PC connected via USB and data can be easily managed.

Features

MILA-5000 series

  • 50°C/s high speed heating.
  • Select the desired atmosphere from vacuum, gas, gas flow, air.
  • Precise temperature control.
  • Compact, table-top design.
  • Simple input of temperature recipe into computer connected with USB
  • Display temperature data on the PC monitor during heating

MILA-5000UHV

  • Heat treatment in a high vacuum atmosphere.
  • Pumping down up to 10-4 Pa (when using TMP).
  • Inherits the capabilities of the MILA-5000-P-N (high temperature type).
  • Compact, table-top design.
  • Simple input of temperature recipe into computer connected with USB
  • Display temperature data on the PC monitor during heating

Specifications

MILA-5000 series * General Model
Model: MILA-5000-P-N (high temperature type)
Temperature Range : RT ～ 1200 °C
Sample Size : □ 20 × t 2 (mm)
Atmosphere : Air, Low vacuum, Gas flow
Process pressure : More than 10Pa ~ atmospheric pressure

Model : MILA-5000-P-F (uniform temperature type)
Temperature Range RT ～ 800 °C
Sample Size □ 20 × t 2 (mm)
Atmosphere Air, Low vacuum, Gas flow
Process pressure More than 10Pa ~ atmospheric pressure

*Vacuum pumping system is optional.
*Heating temperature changes according to the heated sample’s infrared reflectance, absorption, heat capacity, and material.

MILA-5000 series * Uniform heating type
Model MILA-5000UHV
Temperature Range : RT ～ 1000 °C
Sample Size : □ 20 × t 2 (mm)
Atmosphere : Air, High vacuum, Inert gas
Process pressure : 10-4Pa ~ atmospheric pressure

*Vacuum pumping system is optional.
*Heating temperature changes according to the heated sample’s infrared reflectance, absorption, heat capacity, and material.
