MC1000 Series

MC1000 Series

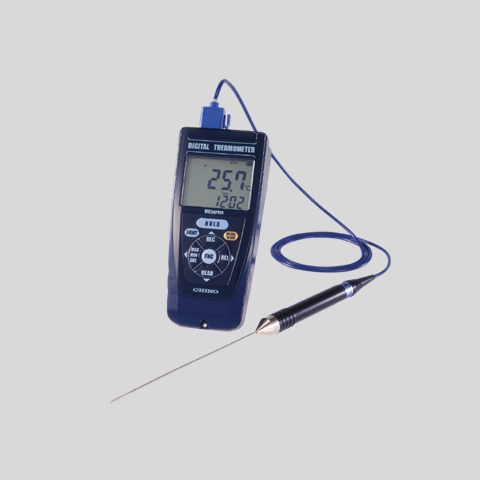

MC1000 Series Handheld Digital Thermometer

MC1000 is a handheld digital thermometer with easy-to-view large LCD display (with backlight). Maximum 20 measured data can be stored in the unit.

  • Multiple range input; thermocouple K and T, and resistance thermometer Pt100
  • Various types of temperature sensor is prepared for versatile application
  • Up to 1000 hours of battery life

Model

MC1000-000

*Probe is sold separately.



Features

Emphasis on Easy to read

  • Easy to read large LCD display
  • Dual displays for measured data and arithmetic result
  • Backlit LCD display enables to see under low-right intensity

Emphasis on Measurement

  • Multi input (Thermocouple/RTD) allows various applications
  • Calibration function is a standard provision
  • Exclusive connector prevent to drop a probe

Abundant functions

  • 20 data storage
  • Various computation (Max, Min, Hold, Average, Alarm, Clock)
  • 1000 hours battery life

Specifications

Number Of Input: 1 point

Input Types:

Multiple range thermocouple: K, T

Resistance thermometer: Pt100

Measuring Range:

Thermocouple K: -200 to 1370°C

T: -200 to 400°C

Resistance thermometer Pt100: -200 to 500°C

Display Resolution:

1°C: -200 to 1370°C

0.1°C: -99.9 to 199.9°C (Manual setting)

Accuracy Rating: At resolution 1°C, ± (0.1%+1°C of
measured value)

At resolution 0.1, Thermocouple K, T ± (0.1%+0.5°C of
measured value)

Resistance thermometer Pt100 -99.9 to -0.1°C: ± (0.1%+0.3°C of measured value)

0.0 to 199.9°C: ± (0.1%+0.2°C of measured value)

*Ambient temperature 20 to 30°C, including thermocouple reference junction compensation accuracy.

Display: 3・1/2-digit LCD with backlight

Memory: Maximum 20 data

Calculation: Max/min/average/amount of change

Battery: AA alkaline battery 2 pcs.

Battery Life: 1000 hours (without backlight) 100 hours (with backlight ON)

Working Temperature Humidity: 0 to 50°C, 10 to 80%RH (no dew condensation)

Dimensions: W76×H164×D36.3mm

Weight: Approx. 250g
