Graphic Recorder - KR3P20-N0A

Graphic Recorder - KR3P20-N0A

Regular price 217,800.00 ฿
Regular price Sale price 217,800.00 ฿
Sale Sold out
Request for Quotation

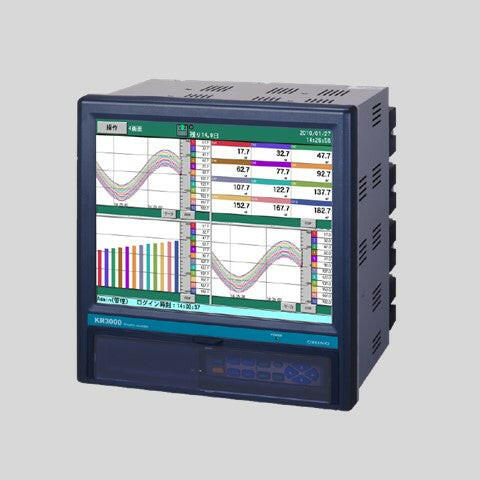

Graphic recorder with measurement data protection function KR3P00 Series

The KR3000 series with measurement data protection function is a paperless recorder equipped with a tamper-proof function that supports data recording in accordance with Part 11 in pharmaceutical manufacturing. It achieves a high-speed recording sampling rate of 100 ms and high accuracy of ±0.1% FS, and measurement data can be stored in 512 MB of internal memory. It has a variety of display screens and high performance, and data management and recorded with simple operation using touch panel.

Product Details

Measurement point/Sampling Rate

12 points/100ms

Communication interface, Digital input, Alarm output, Carrying handle, Other (option)

None

*If request options, please request at quotation form.

Features

Compliant with Part 11! Paperless recorder with security and anti-tampering features

  • FDA 21CFR Part 11 compliant
  • Up to 5 administrator users and 100 general users can be registration
  • Security level adjustable up to 10 levels
  • Various screen display and network functions
  • On-site validation in accordance with the guidelines for proper management of computerized systems is also possible (please contact us for details)

Specifications

Input Specifications

Measuring points: 12 points, 24 points, 36 points, 48 points

Input types: Universal (refer to the table of measuring range)

Sampling rate: 100ms - Approximately 100ms for all points

1 ms.  - Approximately 300ms for all points

Recording Specifications

Internal memory: 512MB

Exterior memory: Store the data file to USB flash drive

Recording cycle: 100, 200, 500ms※

1, 2, 3, 5, 10, 15, 20, 30s

1, 2, 3, 5, 10, 15, 20, 30, 60min

Logging data: Measured data — Time of day, month and year of recording start, tag, measured data, alarm status/types, maker text, etc.

Setting parameter — All setting parameter

Computation result data

General Specifications

Rated power voltage: 100 to 240V AC (universal power supply) 50/60Hz

Maximum power consumption: 65VA

Mounting: Panel mounting

Weight: About 7.2kg(max)

Specifications Sheet Download
