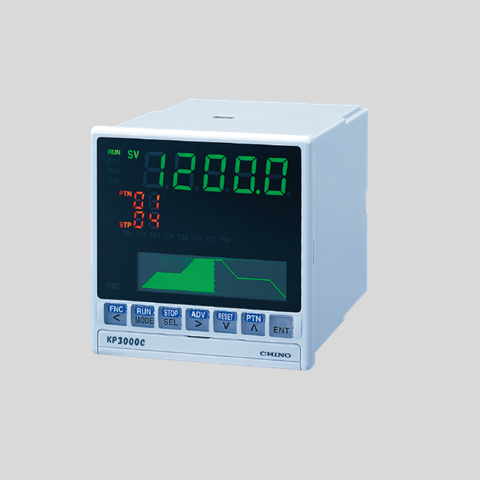

KP3000 Series Digital Program Setter

KP3000 series is a 96x96mm digital program setter with the analog output accuracy of ±0.1% and maximum 30 program patterns (maximum 19 steps/ pattern).

Output signal can be specified from analog output type and digital output type. By combination with a digital indication controller with digital input, the configuration of low-cost program control system is enabled.

Digital Output	Model
Digital Output (RS-422A)	KP3-10C000-G0A
Analog Output (4 to 20mA)	KP3-20C000-G0A
Analog Output (0 to 10V)	KP3-40C000-G0A
Analog Output (0 to 1V)	KP3-50C000-G0A
Analog Output (others)	KP3-60C000-G0A
Digital Output (RS-485)	KP3-70C000-G0A

Features

Large easy to view 5-digit display
Outstanding controllability
Operability inheriting previous models
High precision transmission signal output
24V power supply voltage type provided
Program pattern
Easily identifiable pattern progress display
Universal input
2 colors of casing available
Conforming to international safety standards and European directives (CE)
Conforming to ROHS

Specifications

Setting Unit Specifications

Output Signal: Analog output 4 to 20mADC, 0 to 1VDC, 0 to 10VDC Digital output RS-422A, RS-485
Output Update Cycle: Analog output 0.1sec.
Digital output: Approx. 1sec.
Accuracy Rating: ±0.1% of span
Resolution: Approx. 1/30000
Output Impedance: Approx.10Ω Load
Current: Current output 400Ω or lower, Voltage output 50kΩ or higher
