JM Series - Single Phase Thyristor Regulators

Name: JM Series - Single Phase Thyristor Regulators
Brand: CHINO Corporation Thailand
Availability: InStock

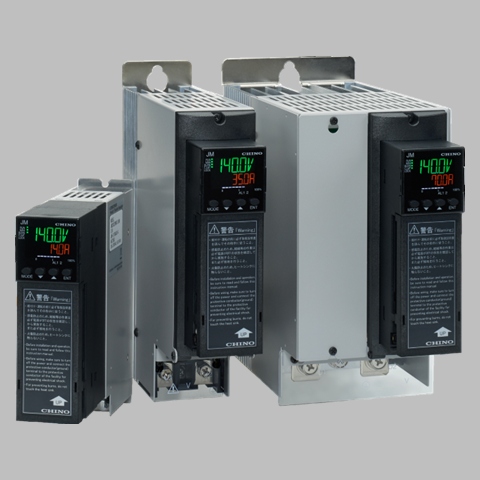

JM series Single Phase Thyristor Regulator

JM is single phase thyristor regulator that receives signal from controller, PLC and manual setting unit and regulates power provided to the electric furnace heater, 7 types of rated current are prepared from 10A to 500A so capacity according to the heater ratings can be selected.

Models

Models	Main circuit rated voltage current	Fast-acting fuse
JM20010□N303NN	200V10A	None
JM20020□N303NN	200V20A	None
JM20030□N303NN	200V30A	None
JM20030□A303NN	200V30A	Built-in
JM20050□N303NN	200V50A	None
JM20050□A303NN	200V50A	Built-in
JM20075□N303NN	200V75A	None
JM20075□A303NN	200V75A	Built-in
JM20100□N303NN	200V100A	None
JM20100□A303NN	200V100A	Built-in
JM20150□N303NN	200V150A	None
JM20150□A303NN	200V150A	Built-in
JM20200□N303NN	200V200A	None
JM20200□A303NN	200V200A	Built-in
JM20250□N303NN	200V250A	None
JM20250□A303NN	200V250A	Built-in
JM20300□N303NN	200V300A	None
JM20300□A303NN	200V300A	Built-in
JM20400□N303NN	200V400A	None
JM20400□A303NN	200V400A	Built-in
JM20500□N303NN	200V500A	None
JM20500□A303NN	200V500A	Built-in

* 100V and 400V series requires additional step up / down transformer (accessories) for control power supply.

Features

Ease of settings and checking option
Built in setting display unit and panel mounting types are provided
Improvement in safety features
Heater disconnection alarm
RS485 (MODBUS) communication function provided as standards
International standards (Conform to CE, UKCA marking)

Specifications

Phase: Single-phase

Rated current: 10, 20, 30, 50, 75, 100, 150, 200, 250, 300, 400, 500A (to be specified)

Rated voltage: 200 to 240V AC

Rated frequency: 50/60Hz (±2Hz)

Input signal: 4 to 20mA DC, 0 to 10V DC, 0 to 5V DC, 1 to 5V DC,

Logic input: (L:0.0V DC≤入力≤1.5V DC, H：4.0V DC≤入力≤10.0V DC)

External dimensions:

H190×W 48×D163mm (10A to 20A)

H270×W 60×D239mm (30A to 75A)

H270×W120×D274mm (100A to 150A)

H320×W120×D274mm (200A to 250A)

H475×W120×D310mm (300A to 500A)
