IR-TE2 (-40-300℃)

IR-TE2 (-40-300℃)

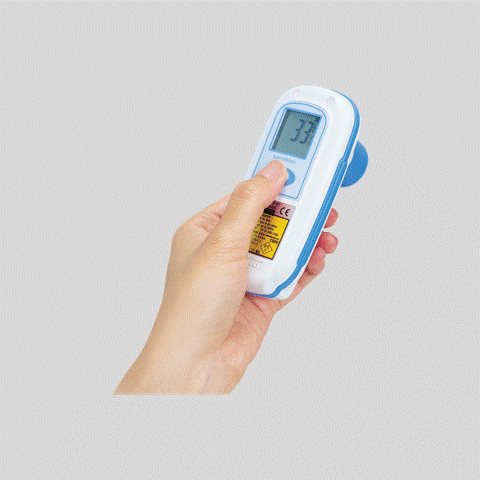

IR-TE2 Series Water-proof Palm-sized Radiation Thermometers

IR-TE2 Series is a waterproof handheld radiation thermometer with a temperature measurement range of -40 to 300°C. It has a one-button operation and a laser pointer for checking the measurement position.

  • Waterproof type that can be washed with water even if it gets dirty (dust proof and waterproof structure of IP67). The case is made of hygienic specifications ABS resin.
  • specifications blue packing, which is not found in natural foods, makes it easy to detect any debris that may have been mixed into the food.
  • It is shock resistant and will not break even if dropped (1m high, on a vinyl tile floor).
  • Auto power off function protects you from forgetting to turn off the power
  • Traceability certificates (sold separately) suitable for HACCP, ISO9000, and ISO14000 can be issued.

Features

  • Non-contact surface temperature measurement.
  • Measures temperature in 1 second even in places where it is difficult to measure.
  • Measure with the touch of a button.

Specifications

Waterproof type

Model: IR-TE2

Detecting element: Thermopile

Measurement temperature range: -40～300℃

Accuracy ratings:

±1% of measured value ±1 digit or ±2℃ ±1 digit, whichever is greater,

-30 to 0.1°C: ±3°C ±1 digit

-30℃ or less: ±5℃±1digit

Repeatability: Within 1℃±1digit

Resolution:

0.5°C, but

Below -20℃: 1℃

Over 100℃: 1℃

Response time: 1s (90%)

Measurement diameter/measurement distance: fixed focus φ45/500mm

Aiming: Center point indicated by laser beam

Power supply: 2 x AAA alkaline batteries

Power consumption: Approximately 10 hours of continuous use

External dimensions: W59.6xH119.6xD54mm

Weight: Approx. 123g (including batteries)

Others: IP67, CE marking, PS/C mark

Specifications Sheet Download

IR-TE2 Series
