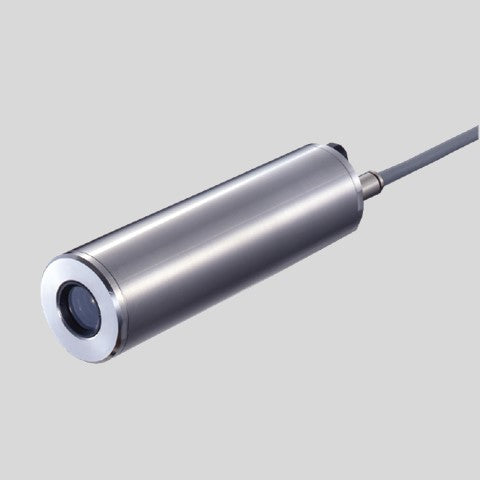

IR-SAB (0-1000℃)

IR-SAB (0-1000℃)

IR-SA Series On-Line Infrared Thermometer (Low Temperature Type)

IR-SA series is a radiation thermometer, which has excellent environmental resistance in harsh field circumstance. The thermometer achieves high accuracy and high-speed response, and also has four types: for low, medium and high temperature, and 2-color type to support various applications in many fields such as process lines using none contact type thermometer.

  • Excellent environmental resistance. Heat resistance max. 90°C, IP67 dustproof and waterproof structure.
  • Compact but robust. φ50×170mm, stainless steel casing is employed.
  • Telescope and laser floodlight is used for focusing system. Both are detachable and come with focus adjustment function.

Model

Measuring range

Type

IR-SAB□□N

0～1000℃

Low Temperature

*For □□ refer to following “Measuring Diameter and Measuring Distance”

Measuring Diameter and Measuring Distance

For Low Temperature

Models

Measuring Diameter and Measuring Distance

50

φ25/500mm

51

φ40/1000mm

52

φ80/2000mm

00

φ10/500mm

01

φ20/1000mm

02

φ40/2000mm

*Please request diameter at request quotation form.

Features

  • Radiation Thermometer for Medium Temperature Processes Dustproof and Waterproof with IP67 structure. Measurement range is 300 to 1600°C, with a maximum operating temperature of 90°C. Usable in harsh environments such as steelmaking processes.
  • Exceptional Environmental Resistance Operates in temperatures up to 90°C with an IP67-rated dustproof and waterproof construction.
  • High Accuracy Achieved through traceable calibration for high-temperature ranges.
  • Compact and Robust Design Measuring φ50×170mm and encased in a durable stainless-steel body.
  • High-Speed Response Response time of 0.002 seconds for both medium and high-temperature applications.
  • RS-485 Communication Interface Allows remote configuration and monitoring of up to 31 units using a configuration display or PC.
  • Innovative Eyepiece Unit Features a detachable, shareable design for improved visibility.
  • Wide Range of Accessories Designed to suit various installation environments and applications.
  • Conformed to RoHS Environmentally friendly design meeting strict standards.

Specifications

Type: Low Temperature

Measuring System: Wide band radiation thermometer

Detecting Element: Pyro electric detector

Measuring Wavelength: 8 to 14μm

Measuring Range: 0 to 1000°C

Accuracy Rating Below:

200°C ･･･±2°C
200°C or more･･･±1% of measured value

Repeatability: 0.2°C

Resolution: 0.5°C

Response Time: 0.2s

Lens Aperture: φ15m

Power Supply: 24V DC±10% (Supplied from setting display unit)

Weight  Approx.: 0.7kg
