IR-BZP (0-1000°C)

IR-BZP (0-1000°C)

37,500.00 ฿
37,500.00 ฿
Sale Sold out
Request for Quotation

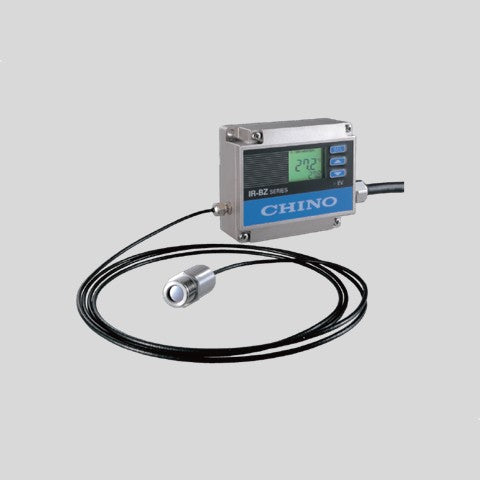

Compact Infrared Thermometer

IR-BZP features a compact detector by separating the detector from the main body, allowing use in high-temperature environments.
It is equipped with a digital temperature display and parameter setting function for stable and accurate measurements.

  • High accuracy and stable measurement even when the ambient temperature changes
  • Supports production lines requiring fast response with a tracking speed of 15 ms
  • Wide temperature measurement range from 0 to 1000°C, suitable for both low and high temperature applications

Measurement Temperature Range: 0-1000°C
Response Speed: 15ms
Measurement Diameter: φ8/200mm
Cable Lenght: 1.5/ 3/ 8/ 15m

Model list

Features

Detection unit is separate, allowing use in high temperature environments

It can be used in low to high temperature environments of -10 to 100°C, with measuring objects of 0 to 1000°C. The detector and main unit are separate, allowing for space-saving installation.

Other features

  • high accuracy and stable measurement possible even when the environmental temperature changes
  • high-speed response of 15 ms. Suitable for production lines that require high speed response.
  • The measurement temperature range is wide, from low temperatures (0 to 1000°C)

Specifications

For high temperatures

  • Detecting element: Thermopile
  • Wavelength: 8～14μm
  • Measurement temperature range: 0～1000℃
  • Accuracy ratings:
  • Under 300℃: ±3.0℃
  • 300℃ or higher: 1.0% of measured value
  • Repeatability: ±0.5℃ or ±0.5% of measured value
  • Resolution: 2℃
  • Response time : 15ms
  • Measurement diameter: φ8/200mm
  • Output Signal: current or thermocouple output
  • Communication interface: RS-485
  • Power supply: 8 to 36V DC
  • Power consumption: Maximum 1.5VA
  • External dimensions: W80xH70xD30mm (main body)
  • Weight : Approx. 450g (main body)
  • Others: CE marking

Specifications Sheet Download

IR-BZP Series (JP)
