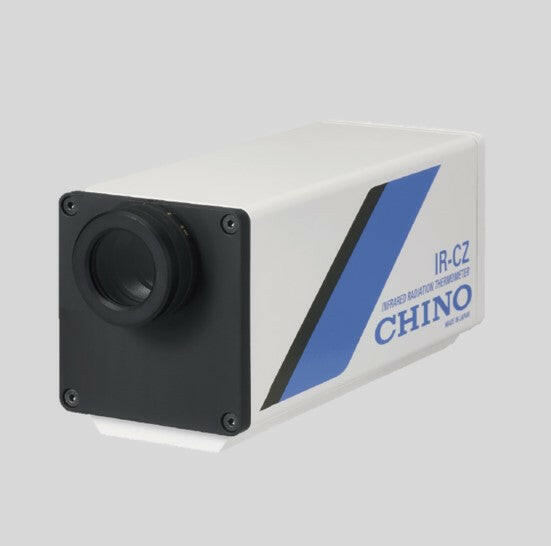

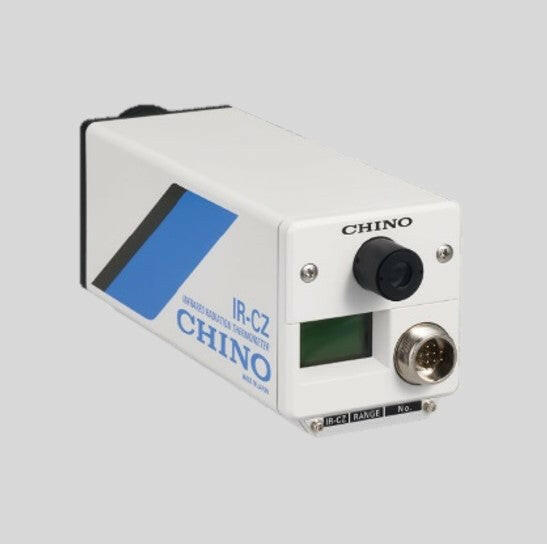

IR-CZI2T (300-1600℃)

Infrared Thermometer (Medium Temperature Type)

IR-CZ series is self-contained type, stationary radiation thermometer equipped with digital temperature display, and measured value external output.

Highly accurate measurement at high temperature range is achieved by tracing from a metal-carbon eutectic point.
Stability at high temperature continuous measurement and resolution from low temperature range are improved.

Model	Measuring range	Type
IR-CZI2T	300～1600℃	Medium Temperature

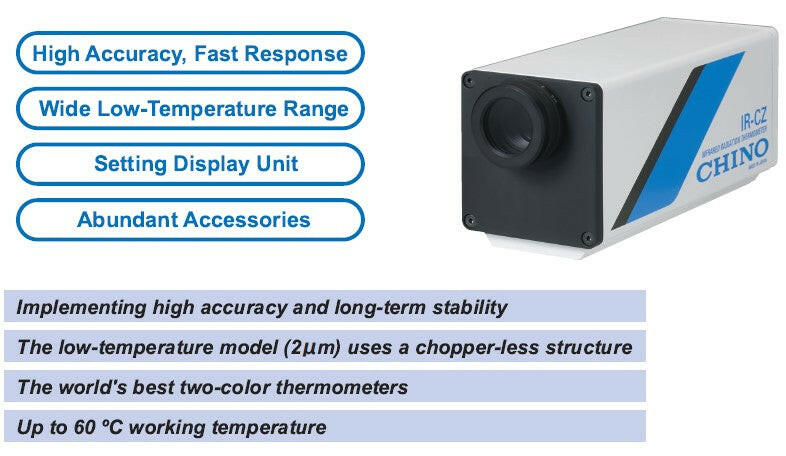

Features

Medium-Temperature Wide-Range Radiation Thermometer

This thermometer accurately measures temperatures from 200°C to 2000°C while minimizing the impact of atmospheric light path absorption. It features a revamped optical system and circuit board, ensuring long-term stability. The short-wavelength thermometer is designed to minimize the effects of changes in the surface condition of the measurement target on temperature readings.

Other Features

Realization of High Precision and Long-Term Stability
Utilizing previous achievements and expertise, the optical system and circuit design have been completely revamped to enable stable measurements from low temperatures to ultra-high temperatures. Long-term stability has been evaluated over approximately three years, maintaining temperature support within the specified range.
World-Class Two-Color Radiation Thermometer
The IR-CZH features a new optical design that reduces chromatic aberration and significantly improves light collection efficiency to the detection element. This results in exceptional stability of the indicated values in two-color radiation thermometry, minimizing the influence of field defects on the measurement values. It is widely used in cutting-edge ultra-high temperature firing processes.
Operating Temperature Range: Up to 60°C
This has been achieved through the adoption of heat-resistant electronic components, improvements in the heat resistance of the objective lens, and enhancements in surrounding temperature compensation performance.

With a rich array of accessories, this thermometer is capable of adapting to even more extreme environments.
