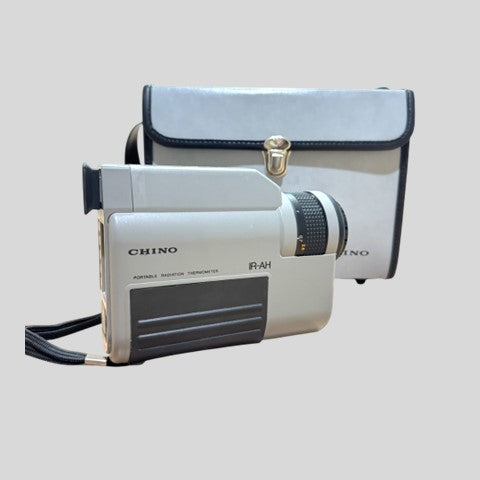

IR-AH Series
IR-AH Series

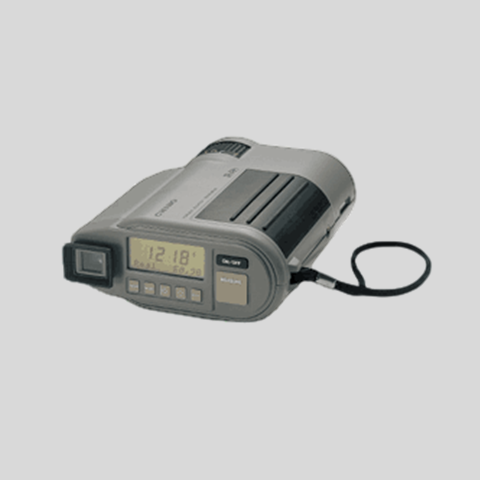

IR-AHS2 Digital Radiation thermometer
The IR-AHS2 model is a non-contact, handheld digital radiation thermometer designed for portable measurement and logging of surface temperature.
Product Details |
|
Type |
Hand-held type |
Size |
144x144mm |
Measuring system |
Narrow band radiation thermometer |
Measuring range |
600-3000°C |
Measuring wavelength |
0.96 |
Alarm output |
None |
Response time |
0.5 seconds |
Display system |
LCD digital, 4 digits |
Data storage function |
Maximum of 1000 data points |
Power supply |
4 AA (UM-3), batteries (approximately 20 hours of continuous measurement) |
Casing material and color |
ABS plastic, gray |
Dimensions and weight |
W135 x H60 x D175mm, 700g |
Analog output |
0 to 1V DC (with connecting cable) |
Features
Features
- Data storage: Maximum 100 data can be stored.
- Easy to read internal and external digital display
- RS232C port: The communications interface port.
- Signal modulation: Measurement modes of real value (real), maximum (peak), average value (delay) and minimum value (valley) are selectable for measuring purposes.
- Data logging software (option)
- Analog output (option)
