DP3000G Graphic Program Setter

DP3000G Graphic Program Setter

Graphic Program Controller/Setter DP-G Series

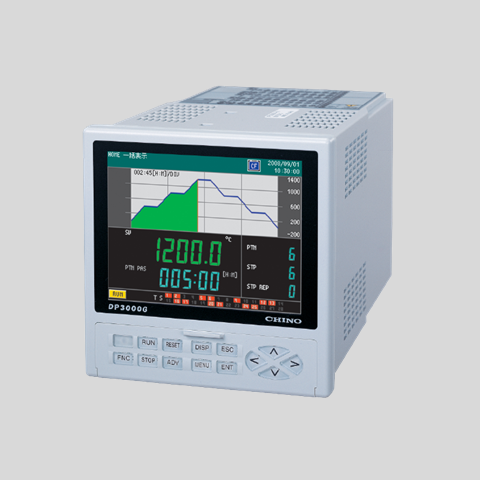

DP3000G series is a graphic program setter employed high visibility 5.6" TFT color LCD display. Maximum 200 types of program pattern (Maximum 4000 steps) are stored and performance pattern is selectable. Setting output can be selected from high accuracy analog output (DC current/ voltage) and digital output with no setting errors using communications.

Setting output signal

Model

Digital output (RS-422A)

DP3-10G000-G10

Analog output (4 mA to 20 mA)

DP3-20G000-G10

Analog output (0 V to 10 V)

DP3-40G000-G10

Analog output (0 V to 1 V)

DP3-50G000-G10

Digital output (RS-485)

DP3-70G000-G10

Features

  • Employing clear 5.6" TFT color LCD display
  • Easy program pattern settings on graphic screen
  • Time signal settings per step
  • Storage settings in CF card
  • Abundant external input / output functions

Specifications

Setter specification

  • Output signal: Analog output 4 mA to 20 mA DC, 0 V to 1 V DC, 0 V to 10 V DC
  • Digital output: RS-422A, RS-485
  • Output update cycle: 0.1 second
  • Accuracy rating: ±0.1% of output span
  • Resolution: Approx. 1/50000
  • Output impedance: Approx. 10 Ω
  • Load current: Current output 400 Ω or less,Voltage output 50 kΩ or more
