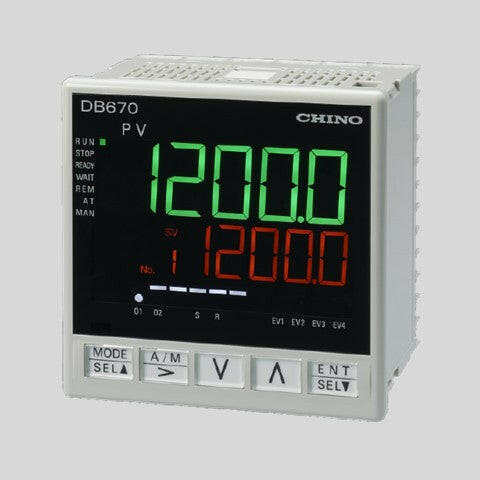

DB67160000-10A

DB67160000-10A

DB600 series is a digital indicating controller with the indicating accuracy of +- 0.1% and the control cycle of approximately 0.1 seconds.

Various functions including universal input and multiple setting values (8types) are provided as standard.

There are 3 types of size.

  • DB670 96x96mm.
  • DB650 48x96mm.
  • DB630 48x48mm.

Product Details

Control algorithm

PID control

Control output 1

Voltage output type

Control output 2

None

Communication interface

Transmission signal output

Remote signal input

Programming function (option)

Additional Function (option)

2 Alarm event output points

2 Event output points [EV1, 2]

Power supply voltage

100-240V (AC)

Features

  • Big and easily seen LCD
    Wide viewing angle LCD is employed. 5-digit, 11-segment display realizes eye-friendly design.
  • Our original control algorithm is available
    Original Z control system which developed from PID control is available. It is effective in over-shoot suppression and shortening settling time on heat control.
  • New auto tuning
    Compared to conventional auto tuning, new auto tuning is able to suppress over-shoot and shorten settling time.

Specifications

Specifications

  • Input Specifications

Input Signal: Thermocouples,
RTDs, Direct current voltage

  • Measuring Range: Thermocouples
    15-type, RTDs 3-type, Direct current voltage 4-type
  • Accuracy Rating: ±0.1%FS ±1digit
    of measuring range * Refer to the catalog for details.
  • Reference Junction Compensation Accuracy: ±1.0°C (ambient temperature 23°C ±10°C)
    ±2.0°C (temperatures other than above)
  • Sampling Rate: Approx. 0.1sec.

Display Specifications

  • Models:

DB670 (96×96mm)

DB650 (48×96mm)

DB630 (48×48mm)

  • Display Segment type:  LCD (LED
    backlight)
  • Character Height (PV):

DB670 21.5mm

DB650 13.7mm

DB630 10.5mm

  • Control specifications
  • Control Interval: Approx. 0.1sec.
  • Output Type: ON-OFF pulse output
    type, ON-OFF servo type*, Current output type, SSR drive pulse type, Voltage output type *It does not come with DB630.
  • Setting Specifications
  • SV relates: SV 8-type for
    constant value operation (max. 5-digit setting), SV rate of change
  • Control relates: PID 8-types (It does not come with DB630)

General Specifications

  • Models: DB670
  • Power Supply Voltage: 100 to
    240V AC (±10%), 24V AC/DC (±10%)
  • Power Supply Frequency: 50/60Hz
    (±2%)
  • Power Consumption:

100 to 240V AC Specifications: Max.
12VA24V AC/DC Specifications: Max.
12VA (at 24V AC), Max. 6W (at 24V DC)

  • Working Temperature/Humidity
    Range: Temperature -10 to 50°C (for close installation: -10 to 40°C) humidity 20 to 90%RH (at -10 to 31°C)
  • Mounting: Panel mounting type
  • External Dimensions: W96×H96×D65mm
    (Depth is without the terminal cover)
  • Weight: Approx. 240g
