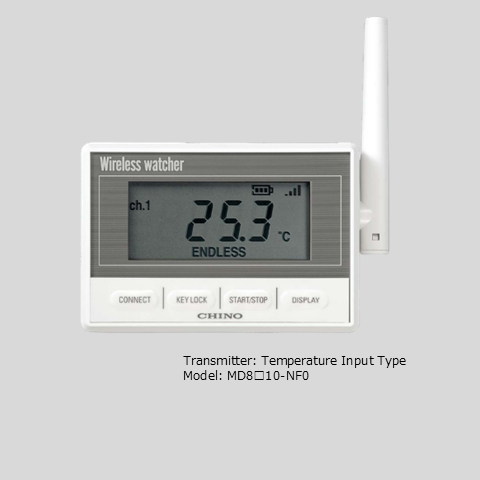

MD8000 Series (Temperature Input Type)
MD8000 Series (Temperature Input Type)
監視機能付き無線ロガー MD8000（イーサネット接続）
最大360台の送信器から測定データ（温度/湿度/電圧）を無線送信し受信器を介してパソコンに収録、警報監視するシステムです。
受信器から警報出力・Eメール送信などが可能です。
|
送信器形式 |
MD8□1□ |
|
測定周期 |
5秒～3時間 |
|
受信器形式 |
MD800R-00L |
|
送信器と受信器間の通信 |
特定小電力無線 |
|
受信器とPC間の通信) |
有線LAN(イーサネット) |
特長
特長
- Collect and monitor data from distributed transmitters via a receiver and a PC.
- Transmitters are available for temperature (thermistor), temperature and humidity, thermocouple input, RTD input, and voltage measurement models (with scaling function).
- Centralized management of up to 360 transmitters using a single PC (with 6 receivers).
- Wireless transmission range: approximately 100m indoors and 400m outdoors. Transmitters can be used as repeaters, allowing up to 6 levels of relays.
- Standard features include an email notification function and 3 alarm outputs on the receiver.
- Inspection reports are included as standard for transmitters.
- Dedicated application software simplifies system setup, including adding or removing transmitters.
仕様
仕様
Measurement range: -10.0 to
50.0°C
Accuracy: ±0.3°C ±1 digit (20 to 30°C)
±0.5°C ±1 digit (Other)
Memory capacity: 16,000 data/ channel
Recording Interval: 5 seconds to 3 hours
Communication method: Specific low power radio (429MHz Band)
Power supply: 2 AA battery Type, 220VAC Type
